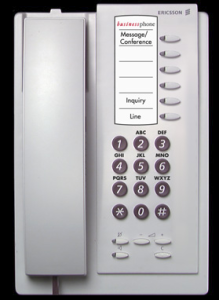

BASIC Telephone, DBC 210
This basic telephone provides the following features:
3 fixed programmed keys with LED
3 free programmable keys with LED
Loudspeaker
On-hook dialling
Wall mounting possible
User Guide (BusinessPhone)
User Guide (MD110)
ECONOMYplus Telephone, DBC 211
This telephone provides the following features:
Two line access
6 fixed programmed keys with LED
4 free programmable keys with LED
Loudspeaker
Group listening
Hands-free speaker
Wall mounting possible
User Guide (BusinessPhone)
User Guide (MD110)

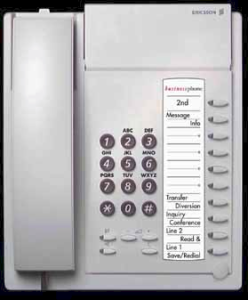

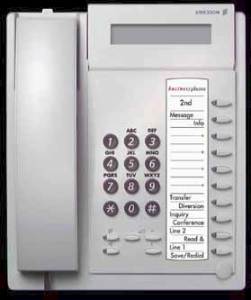

STANDARD Telephone, DBC 212
This telephone provides the following features:
Two line access
6 fixed programmed keys with LED
4 free programmable keys with LED
2*20 character alphanumerical display
Loudspeaker
Group listening
Hands-free speaker
Wall mounting possible
User Guide (BusinessPhone)
User Guide (MD110)
EXECUTIVE Telephone, DBC 213
Two line access
6 fixed programmed keys with LED
14 free programmable keys
3*40 character alphanumerical display
4 menu keys
Loudspeaker, Group listening
Hands-free speaker
Wall mounting possible
Up to 2 KEY PANELS of type DBY 409 01 or up to 4 key panels of type DBY 409 02 may be connected to the EXECUTIVE telephone (Revision 6 or later). 4 key panels are only supported on the ELU-D3 and MFU.
Each KEY PANEL has 17 programmable keys with LEDs. Each KEY PANEL can be snapped on to the EXECUTIVE telephone. If the panels DBY 409 02 are used one seperate power supply has to be connected to the telephone. The key panels DBY 409 02 must not be mixed with the key panel DBY 409 01!
For more informations concerning the key panels, see document 1531-DBC 211 01 Uen.
User Guide (BusinessPhone)
User Guide (MD110)
Operator’s Console, DBC 214
This is a telephone that has been specially adapted for OPERATOR requirements. The console has special keys for the various OPERATOR functions as well as a 5*40 character display.
The OPERATOR’s Console has the following keys:
Two line access
13 fixed programmed keys with LED
3 free programmable keys with LED
5*40 character alphanumerical display
4 menu keys
Loudspeaker
Group listening
Hands-free speaker
Wall mounting possible
Up to 2 KEY PANELS of type DBY 409 01 or up to 4 key panels of type DBY 409 02 may be connected to the OPERATOR’s Console (Revision 3 or later). DBC 214 must be connected to a ELU-D3 or a MFU.
Each KEY PANEL has 17 programmable keys with LEDs. Each KEY PANEL can be snapped on to the EXECUTIVE telephone. If the panels DBY 409 02 are used one seperate power supply has to be connected to the telephone. The key panels DBY 409 02 must not be mixed with the key panel DBY 409 01!
For more informations concerning the key panels, see document 1531-DBC 214 01 Uen.
